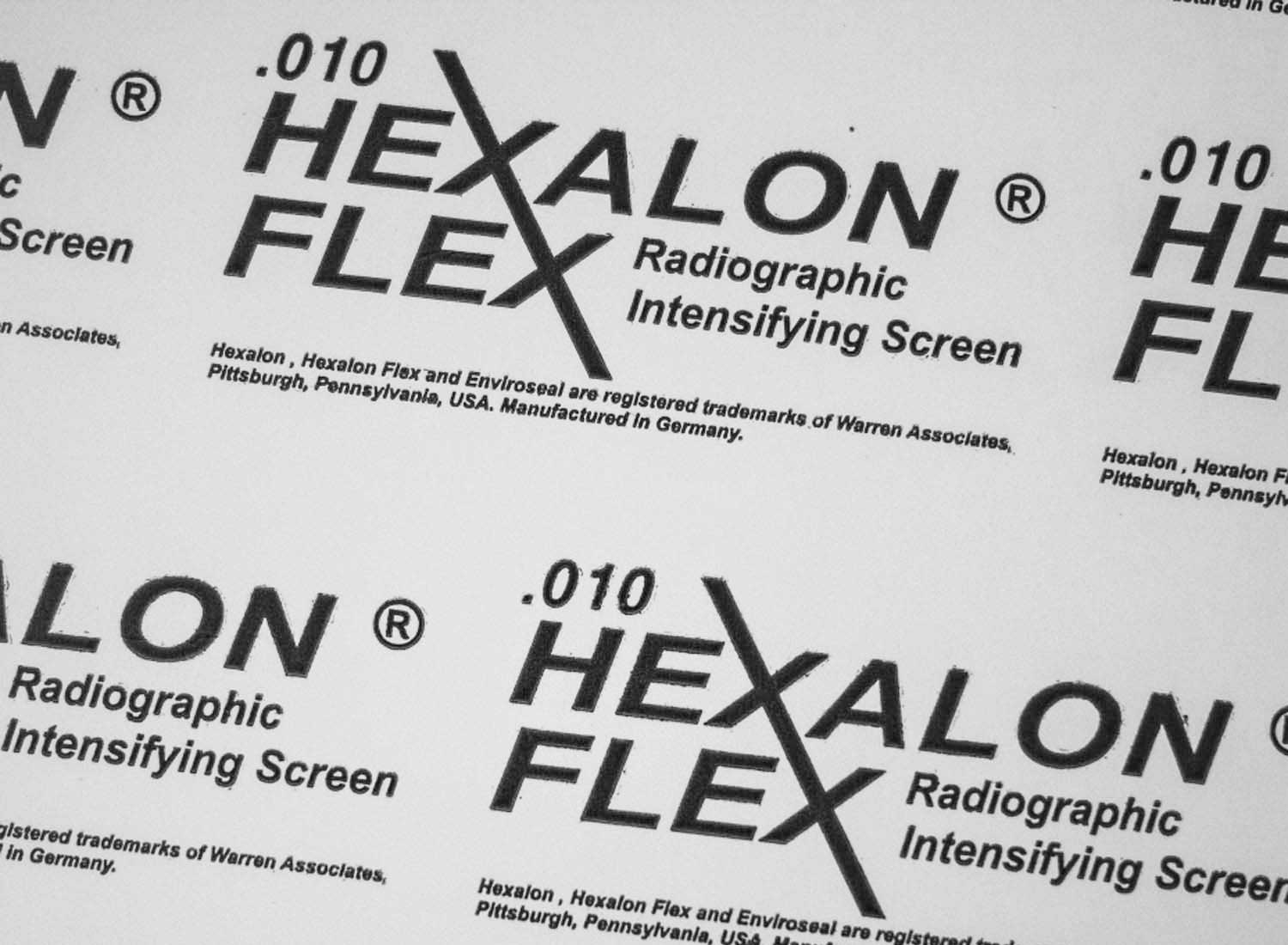

Hexalon Flex Radiography Intensifying Screens

For A Tighter Radius and Better Film-To-Screen Contact

  • The popular industry standard for radiographic testing
  • Guaranteed Artifact-Free for greater accuracy
  • Proprietary Fiber 90 Backing for greater flex and durability
  • Unique flexible backing for inspecting dimensional surfaces
  • Fits a tight radius for better film-to-screen contact
  • Cut exposure time while increasing contrast and sensitivity
  • High absorption rate reduces scatter and secondary radiation
  • Enviro Seal© peel-off cover protects from scratching and oxidizing
  • In sheets or rolls at .005” or .010” thickness and various widths

Cut Screens

Standard Sizes

14”x17”
7”x17”
8”x10”
4.5”x10”
5”x7”
4.5”x17”

*Custom sizes upon request

Roll Stock

Available Thicknesses: .005” .010”

2-3/4” (approx. 70mm wide) x 300 ft. x .005” 180 ft. x .010”

3-1/2” (approx. 90mm wide) x 300 ft. x .005” 180 ft. x .010”

4-1/2” (approx. 115mm wide) x 300 ft. x .005” 180 ft. x .010”

17” (approx. 432mm wide) x 95 ft. x .005”
